Gear grinding and CNC profiles
Gear grinding and CNC profiles Gear grinding and CNC profiles Gear grinding and CNC profiles Gear grinding and CNC profiles Gear grinding and CNC profiles Gear grinding and CNC profiles Gear grinding and CNC profiles Gear grinding and CNC profiles Gear grinding and CNC profiles Gear grinding and CNC profiles Gear grinding and CNC profiles Gear grinding and CNC profiles Gear grinding and CNC profiles

Gear grinding and CNC profiles

Need maintenance technician, revision and warranty? Click here.

Equipment code: 206-608

COTAÇÃO

Technical data/specifications
Max diameter tip. 2.000 mm
Central rotary table/wheel distance min./Max. 220/1210 mm
maximum depth Profile. 100 mm
Course length max. 1.000 mm
Helix angle max. -45/90 Deg
Rotary table load max. 20000 kg
Rotary table Diameter 1500 mm
diameter of rotary table (diameter x depth) 650 x 220 mm
450 x 500 mm
Grinding wheel diameter max. 400/450 mm
Grinding wheel width max. 100/130 mm
Min Dressable diameter. 180/190 mm
grinding spindle Power max license. 25/40 kW
required space for machinery and periphery (L x W x H) 7600 x 7100 x 4200/4700/5000 mm

of Nr:. RT679

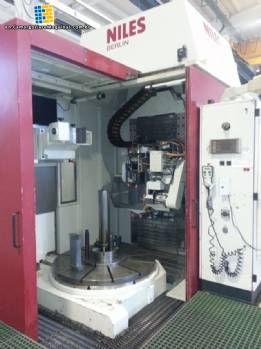

Gear Grinding and CNC profiles
brand name: NILES k12k * model: * ZP20
CNC year: 2001


Photos and images sent by email will be considered as ad authorization on our websites and marketing.
Camargo Industrial has no responsability for the data delivered by the advertiser, (Operation, technical, maintenance, warranties, technical delivery) and registration of the same data, exempting Camargo Industrial responsibilities on the veracity of the information described, civil and criminally.
The advertiser declares that the equipment is their property, settled without alienation, pending fiscal or judicial attachment.
Standard Work Safety of Machines and Equipment (NR12): 12.1.1. Camargo Industrial does not participate in the use phase construction, transport, assembly, installation, adjustment, operation, cleaning, maintenance, inspection, decommissioning and dismantling of machinery or equipment, any such liability of the seller attributes and / or buyer, relieving - any responsibility Camargo Industrial.



Others suggested equipment for you:

Cylindrical grinding Zocca
Cylindrical grinding Zocca

Equipment code: 665-658

Brand: Zocca

Cylindrical grinding Zocca.
Model: RU5000-6
year: 2015
distance between centers: 5000 mm.
maximum diameter of milling: Ø 660 mm/Ø 900 mm.
diameter of grinding wheel: 660 mm.
KW: 8.5-13.
Volts: 380 v.
cycles: 50 Hz.
Including:
Eepo...
Hydraulic Feed Grinding
Hydraulic Feed Grinding

Equipment code: 207-208

Hydraulic grinding Advance
Displayed in three axes
1 Spring right side-k12k * 1 * rotary double Spring left side projection
Traslazione n. 4 engine oil 4 (2 per lato)
Command 360 degree rising oil buttonhole
Bar-8000 mm x 2000 mm.
Head-8 ...
Flat grinding
Flat grinding

Equipment code: 105-026

Brand: Tavola

Corsa Tavola-7600 mm
-
2000 mm maximum height-1550 mm
maximum capacity-20 tons
Year-1988...
Grinding, milling cutter, electromagnetic Plates, Compressor
Grinding, milling cutter, electromagnetic Plates, Compressor

Equipment code: 872-884

01-Jarocin 50. * ISO milling machine k12k * 01-Trimmer pantographic Two-dimensional Regmed PGL-
01-Trimmer pantographic Three-dimensional Regmed PGC-1.
01-plate 200 x 500 mm Metalmag Electromagnetic mill.
02-255 x 600 mm Italpro Electromagnetic ...
2 Retificas Blanchard
2 Retificas Blanchard

Equipment code: 266-277

Brand: Blanchard

2 Retificas Blanchard.
Being one of 780 mm and 1000 mm.
Both are reviewed and in full operation.
Model: 5KR204A595.
Voltage: 220/440 V
...
Rectify 18000 mm x 2000 mm
Rectify 18000 mm x 2000 mm

Equipment code: 040-050

Rectify 18000 mm x 2000 mm
Measures-18000 mm x 2000 mm
height: 2000
02 Heads, a
Rotary hydraulic feeding with four engines
With wiring diagrams
...
Industrial Equipment
Industrial Equipment

Equipment code: 765-677

02 large Presses with capacity of 750 tonnes (brand name: THE FRENCH OIL MILL MACHINERY co.)
04 small Presses with a capacity of 350 tonnes. (tag: IMAPRE)
fully automated Greenhouse
02
Retificas for wheel...
Vertical grinding Camut
Vertical grinding Camut

Equipment code: 243-265

* K12k * Camut brand Model-V 2.30 C
type
-hydraulic Power-120 HP
Registration-7812 120
dimensions-2800 x 650 mm
Chuck-2700 x 650 mm magnetic
spring-850 mm ø Diameter
grinding Length 3000 mm-
height-500 mm grinding
number Test1...







Visitation: Schedule and availability of equipment. Merely illustrative images
