Used Equipments for sale

Line for chocolate coating

>> Chocolates
>> Temperadeiras
>> Tunnel
>> Foods
>> Candies
>> Tunnel /

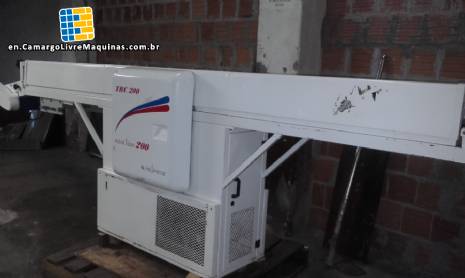

Line for chocolate coating
Line for chocolate coating Line for chocolate coating Line for chocolate coating Line for chocolate coating

Line for chocolate coating

Need maintenance technician, revision and warranty? Click here.

Equipment code: 003-825

COTAÇÃO

Line for chocolate coating.

-200 ML model line consists of the following facilities:
-continuous Temperadeira TPR model 30 with a capacity of 30 kg/h of chocolate.
technical characteristics:
direct Cooling cylinder R134A.
initial Heating 20 minutes.
type * k12k resistance heating * heating Liquid water.
water circulation through severity.

-cooling tunnel with refrigerating capacity 950 kcal/h and width of 200 mm.
cooling can be through refrigerant or water freezing.
Have pneumatic mat alignment.
speed Variator with inverter frequency.

Description:
Technique through a power supply of chocolate in liquid state directly in the temperadeira, begins a process of continuous temperature control with production scale appropriate to the size of the line and keeping product quality powered.

through the adjustable air curtain inflated on products or with a grid Optional adjustable either vibrating in its intensity, you can control the amount of chocolate in the product.

cooling tunnel with temperature and speed previously set, the product already covered is the ideal conditions for its solidification, thus completing the cycle of operation.
out of the tunnel a device for the product stand out of any grip on the treadmill without being damaged.

equipment are modular and can be operated individually, allowing for optimization in processing of seasonal products such as eggs or Easter candies.

basic dimensions of veneering line.
-4700 mm Length
-Width 600 mm.
-height 900 mm.

technical data:
model: 200 ML.
Table: Approximately 500 to 1000 mm.
length : Approximately 570 mm.
working width: approx 400 mm.


Brand:
Hebleimar

Main applications:
Food industry
Manufacture of chocolates

Photos and images sent by email will be considered as ad authorization on our websites and marketing.
Camargo Industrial has no responsability for the data delivered by the advertiser, (Operation, technical, maintenance, warranties, technical delivery) and registration of the same data, exempting Camargo Industrial responsibilities on the veracity of the information described, civil and criminally.
The advertiser declares that the equipment is their property, settled without alienation, pending fiscal or judicial attachment.
Standard Work Safety of Machines and Equipment (NR12): 12.1.1. Camargo Industrial does not participate in the use phase construction, transport, assembly, installation, adjustment, operation, cleaning, maintenance, inspection, decommissioning and dismantling of machinery or equipment, any such liability of the seller attributes and / or buyer, relieving - any responsibility Camargo Industrial.



Others suggested equipment for you:

Rotary filling with 12 automatic nozzles
Rotary filling with 12 automatic nozzles

Equipment code: 440-450

Brand: Imacal, Wada

Rotary filling with 12 automatic nozzles.
Brand: Wada, Imacal.
Model: Mr 12.
Double conveyor belt.
In stainless steel.

...
Shrink Machine-Poly Pack
Shrink Machine-Poly Pack

Equipment code: 170-102

Brand: Poly Pack

Shrink machine-Poly Pack.
Size:
height 1.90 mm.
width 1.05 m.
2.65 m Length.
weight 1700 kg.

1.00 mouth comp. x 0.80 of alt....
Cobrideira for chocolate Perking
Cobrideira for chocolate Perking

Equipment code: 637-658

Brand: Baker Perkins

Cobrideira for chocolate.
Brand: Perking.
Composed by:
-transfer pump.
-heating System.
-chocolate curtain.
-ventilation to remove excess.
-input and output table 400 mm.
measures: 1.20 x width x length 1.65 1.70 time.
...
Ribbon Blender stainless steel 500 L
Ribbon Blender stainless steel 500 L

Equipment code: 524-362

Ribbon Blender stainless steel

Brand: Uniâo Caldeiraria.

Stainless steel machine.

With equipment support.

It has cover with holder and security sensor.

With panel, motor and reducer....
Pot Bain Marie in stainless steel
Pot Bain Marie in stainless steel

Equipment code: 184-586

Brand: Imarvil

Pot Bain Marie in stainless steel.

Brand Name: Imarvil.

15 litre capacity.

Operation: electrical resistance adjustment.
...
Transfer pump in stainless steel
Transfer pump in stainless steel

Equipment code: 173-620

Brand: Alfa Laval

- Transfer pump in stainless steel.

Type Sol 10c2.

- B 190 mm.

- Brand: Alfa Laval.
...
For powder filling Boato Pack
For powder filling Boato Pack

Equipment code: 401-422

Brand: Boato Pack

Boato Pack Tornado 8.

Italian Machine.

Sachet filling machine for powder, like sugar, SPLENDA and similar products.

Continuous system with screw feeder, complete machine in stainless steel.

Brand: Rumor Pack

Model: Tornado 8.

...
Automatic Tampador
Automatic Tampador

Equipment code: 040-342

Tampador automatic.
Model-TSB 25.6.
Manufacturer-IMSB.

Equipment designed for use in process lines where there is a need for automation in the closing of the plastic bottles, glass or metal. Developed to close bottles with various models of c...
Ribbon Blender stainless steel Coupled conveyor screw
Ribbon Blender stainless steel Coupled conveyor screw

Equipment code: 635-751

Ribbon Blender Mixer

- Conveyor thread attached.

- With reducer and motor....
Chocolate melting tank
Chocolate melting tank

Equipment code: 307-300

Tank for melting chocolate.

Made of 430 stainless steel.

Capacity of 420 kg.

Measures: 1,55 m height x 0,90 m diameter.

With motor and reducer, shaft and blades.

Features control panel for functions.

Encamisado with electrical resis...
Conveyor screw Stainless steel 5 meters
Conveyor screw Stainless steel 5 meters

Equipment code: 886-865

Conveyor screw Stainless steel

- 5 meters long.

Measures:

- Diameter: 200 mm.

- Space between fins: 120 mm.

- Shaft diameter: 100 mm.

- Engine: 7.5 hp 1715 rpm.

- With motor and reducer....
Cooling tunnel Hebleimar
Cooling tunnel Hebleimar

Equipment code: 655-321

Brand: Hebleimar

Cooling tunnel for chocolates, sweets, biscuits, cereal bars.

- Brand: Hebleimar

- Voltage: 220V Three-phase;

- Components: 04 motors with respective powers 5,0 KW, two
   Engines with 1.5 KW and 0.75 Kw.

- General characteristics: It ha...
Ribbon type mixer Blender stainless steel 304
Ribbon type mixer Blender stainless steel 304

Equipment code: 606-618

-Ribbon type Mixer Blender stainless steel 304 integer.
Ideal for food and meds.
Capacity: 2,000 litres.
Excellent condition
year: 2012.
Includes screw conveyor to transport the product straight on Packer Indumak.
Made to measure.
Engin...
Metering / Weighing with load cell and double stainless steel silos brand Donar
Metering / Weighing with load cell and double stainless steel silos brand Donar

Equipment code: 306-317

Brand: Donar, MVL

With vibrating chute feeder for solid products.

Presence sensor for container packaging, moved by conveyor belt with talisca.

The equipment has two stainless steel silos, each silo has a scale/load cell and a CLP itself.

CLP brand GTA.
...
Temperadeira for chocolate Carle
Temperadeira for chocolate Carle

Equipment code: 840-350

Brand: Carle & Montanari

Temperadeira for chocolate.
Brand: Carle & Montanari.
Model: TR250.
Capacity: 400 kg per hour with 3 stages....
Liteq cooling tunnel for chocolate
Liteq cooling tunnel for chocolate

Equipment code: 741-153

Brand: Liteq

Cooling tunnel.
Brand: Liteq.
With 8.5 meters long and 7 meters x 300 mm wide canopy.
Equipped with pneumatic system of traction mats....
Paddle mixer 300 liters in stainless steel with spray
Paddle mixer 300 liters in stainless steel with spray

Equipment code: 200-602

All stainless steel horizontal mixer with 300 litres spray.
With 12 Blades in stainless steel 10 mm thick each.
With engine, gearbox and reservoir tank.

External measures.
Width: 860 mm.
height: 1400 mm.
length: 2000 mm.

internal me...
Stainless steel knife / knife roller  Hebleimar
Stainless steel knife / knife roller Hebleimar

Equipment code: 733-761

Brand: Hebleimar

Hebleimar stainless steel knife / knife roller

- Brand: Hebleimar

- Material: Stainless steel

- Voltage: 220 V three-phase

- Components: 1 engine generating 7.2 KW of power

- General characteristics: Spacing between 30 mm rotary knives...
Feeder / Bralyx Filling
Feeder / Bralyx Filling

Equipment code: 545-705

Brand: Bralyx

Bralyx Conveyor / Dosing Machine.

- Model: DOSALYX.

- Machine built in stainless steel.

- Capacity:

- Dosing: 80 mL to 500 mL

- Capacity of the funnel: 32 liters

- Year: 2012.

- Voltage: 220 V.

- Single phase.

- With pre-de...
Rotary filling  10 nozzles Mesal
Rotary filling 10 nozzles Mesal

Equipment code: 133-145

Brand: Mesal

Rotary filling.

Brand: Mesal.

Model: MEC 500/10.

Year: 2002.

10 Tips.

With electric Panel.

Production: 5,000 bottles/hour.
Bottle of 500 ml.

size:

Height 2.20 m

Width 1.80 m.

Length 2.10 m.

Weight 2500 kg...







Visitation: Schedule and availability of equipment. Merely illustrative images
