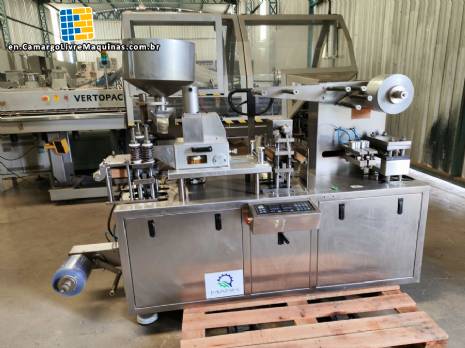

Automatic blister machine for thermoforming blister packs of tablets and capsules.

Manufacturer | brand: Mark Machines.

Model: DPP 120 H.

With a system for heating PVC sheets, a system for forming blisters, an automatic feeder for capsules compressed by massage brushes, a station for joining PVC film with aluminum and a cutting knife.

Equipment with mechanical synchronization, with central channels for moving the stations and cam position sensors, the clamp for pulling the blister to the knife is also mechanical.

Equipment external part made of stainless steel.

Approximate cutting frequency:

Aluminum - Plastic: 10 to 40 cycles per minute.

Aluminum - Aluminum: 10 to 30 cycles per minute.

Adjustable stroke: 30 to 100 mm.

Maximum forming area: 120 x 90 mm.

Maximum forming depth: 14 mm.

Main motor power: 0.75 kW.

Top heating power: 0.5 kW.

Bottom heating power: 0.5 kW.

Heat sealing power: 0.5 kW.

Minimum compressed air flow: ≥ 0.2 m³.

Air pump working pressure: 0.4 - 0.6 Mpa.

PVC thickness: 0.25 - 0.5 x 135 mm.

PTP (aluminum) thickness: 00.2 - 0.035 x 135 mm.

Dialysis paper weight: 50 to 100 g x 135 mm.

Overall dimensions: (L x W x H): 1700 X 650 X 1060 mm.

With operational manual and basic features.
