Peanut Roasting Line for Bulk Products.
Manufacturer | Brand: Fabrimak.
Composed of an industrial roaster, conveyor belts, grain cooler, and storage silos.

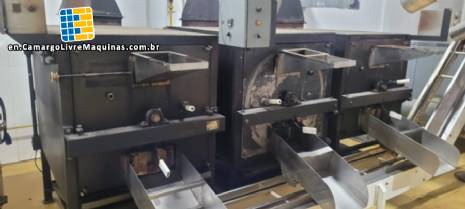

- Industrial roaster for peanuts, grains, and nuts.
Approximate capacity: up to 250 kg/h per roaster.
Quantity: 3 roasters.
Constructed with a robust carbon steel frame, the equipment features a rotating horizontal roasting drum, heated by a gas burner system with a safety system to prevent leaks.
The systems include top exhaust and a metal chimney, responsible for removing gases and smoke generated during the roasting process, maintaining operational safety and environmental compliance.
Grain discharge is carried out through a front gate with a stainless steel chute, directing the roasted product to a conveyor belt that takes it to the cooling system, ensuring a continuous and hygienic process.
- Modular inclined conveyor belt with cleats.
Inclined conveyor belts are equipment designed for the continuous transport of bulk or unit-sized products or materials between different levels of a production process.
Their purpose is to ensure a constant, safe, and automated flow, reducing manual effort and optimizing operating time between stages.
Constructed with a reinforced carbon steel frame, stainless steel components in product contact areas, and a modular belt with cleats, the conveyor offers abrasion resistance, easy cleaning, and a long service life.
The drive system has a local electrical control panel, with push-button operation and speed control via frequency inverters.
The line includes 4 conveyor belts: 1 for feeding the cooler and 3 for feeding the silos, one of which (straight belt) has a reversing control that distributes the product to 2 silos.
- Grain cooler.
Approximate capacity: up to 750 kg/h.
The grain cooler is equipment designed to perform controlled cooling of roasted grains immediately after the thermal process, ensuring temperature stabilization, aroma preservation, and final product quality.
This process is essential to prevent continued roasting due to residual heat, ensuring uniformity and standardization of the product.
The equipment is constructed of stainless steel, offering high corrosion resistance, easy cleaning, and long durability – fundamental characteristics for applications in food environments.
It has a circular tank with a rotating paddle system responsible for agitating and moving the grains, promoting efficient heat exchange with the flow of cold air.
Air is directed through fans and lower ducts, ensuring the rapid removal of heat and moisture from the freshly roasted grains.
- Storage silos.
Approximate capacity: up to 1,300 kg per silo.*
*May vary according to the specifications of the stored material.
Quantity: 3 units.
Storage silos are designed for product storage.
They have a vertical structure made of carbon steel.
Each silo consists of a cylindrical upper body and a conical bottom, optimizing the flow of stored material.
The silos have an inspection and cleaning hatch with a quick-closing lid, allowing for internal maintenance and cleaning. They also have top access points for connecting conveyor lines.
Year: 2008.
Voltage: 220 V. |
