Used Equipments for sale

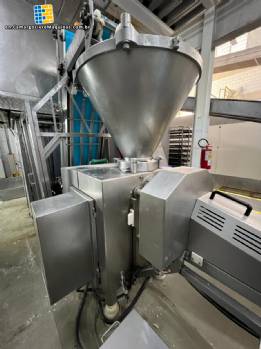

Continuous vacuum divider for dough division VEMAG
>> Pasta dividers
>> Pastas
|
|
|
|
|
| Continuous vacuum divider for dough division VEMAG |
|
Continuous vacuum divider for dividing doughs and mixtures.
Manufacturer: VEMAG do Brasil.
Approximate maximum capacity: up to 320 servings / min.*
*Continuously adjustable depending on portion size.
Approximate maximum capacity: 6750 kg/h.
Portion sizes: 100 grams to 1400 grams.
With 1 outlet nozzle to choose from 40 to 90 mm in 10 mm intervals.
With snail shirt.
With carrier and protective cover.
Plastic mat 240 mm wide.
Conveyor 1100 mm long.
Conveyor height is adjustable between 760 mm and 960 mm.
Frequency converter for speed adjustment up to a maximum of 60 m/min.
250 liter silo with removable feed conveyor and protection
security.
Silo with 130 mm diameter product inlet.
Internal injection pump.
Vacuum control and ventilation transport system.
Integrated CAN-BUS control system.
Graphic display with all settings, functions and error information.
Can store up to 99 filling programs.
Vemag Duo-Drive system with separate drive for auger.
Snail drive with 13.1 kw AC-Servo.
Feed conveyor with 4.0 kw AC motor with frequency converter.
Plugs for external connections.
Machine built in stainless steel with a total nominal power of 22 kW.
Class F5 bakery filter = up to 95% particle separation
larger than 3 microns.
Rotary cutting system with servo motor and variable cutting speed in the exit nozzle area.
Suction fan and external filter.
Working voltage: 380V.
Frequency: 60 Hz. |
