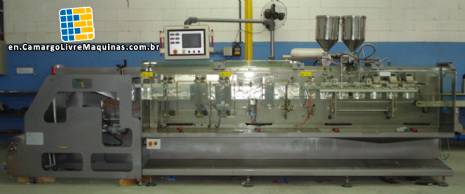

| Floor Stand up Pouch 180 SD and SD 140 |
|
Package with zipper application device of last generation, euro lock with special design with fácíl fitness on the market and still counts with double feed for filling high demand without reducing speed. Operates by a sophisticated system of programmable logic control (PLC) and has touch monitor that allows easy control of the operation. The SD Package 180 still features a unique mobile command with rotating arm, several options such as volumetric filling, servo feeder, piston pump, multi scale system heads and film technology by servomotor.
TECHNICAL DETAILS
SD180 SD280
MODEL
TAM. MINI. 90 X 110 mm POUCH 90 X 110 mm
TAM. MAX. POUCH 180 X 250 mm 140 X 250 mm
PROD. 50 ppm 100 ppm maximum POUCH
VOL 1000 ml 600 ml MAXIMUM
2 2 FILLING STATION
POUCH FORMAT Stand up Stand up Pouch Pouch
OPTIONAL FEATURES Zipper Lock Zipper, Euro, Euro Lock
TECHNICAL INFORMATION
SD180 SD280
MODEL
POWER CONSUMPTION 8Kw
15Kw ELECTRIC VOLTAGE 380 V three-phase 50/60 Hz HZ
0.6 Mpa AIR PRESSURE 0.6 Mpa
AIR CONSUMPTION 250 L/min 400 L/ min
HEER DIMENSIONS 600 mm Max. 600 mm
INSIDE DIMENSIONS 76 mm 76 mm COIL
7200x1210x1500mm 9220x1210x1500 EQUIPMENT DIMENSIONS mm
2150 Kg WEIGHT 2150 Kg |
|
|
|
|
|
|
|
Main suggestions:
|
|
 |
Multi-functional stand up pouch filler for powders and sachets of liquid and gel.
New equipment, with manufacturer's warranty, unused, already delivered in Brazil.
For different types of pouch packaging and variable products, with manual, elect... |
|
|
 |
Brand: ARV, Bosch, Fabrima, Moinhos Tigre, Semco, TekPack, Tigre
Components: Coel, Dakol, Danfoss, Festo, Fotek, GWA, JHM, Parker, Siemens, Switron, Unitronics, WEG
Complete line for the manufacture of chocolate powder and other blenders.
With high automation and space optimization, compact machines with structures for verticalization (platforms, mezzanine, elevator, connections, conveyor threads, dimensioned... |
|
|
 |
Machine for candy to put in the bag
Mixer with two axles
complete line of Dairy
Tube
Packinghouse to 15 Kg
3-wire machine mechanical Stretcher screens with a maximum capacity of 40 cm, 4 x 4 Carousel machine
machine to make baby socks, ... |
|
|
 |
Brand: Arotec
Metallographic cutter.
Approximate capacity: up to 380 kg.
Manufacturer / brand: Arotec.
Model: Arocor 350.
Year: 2020.
Floor-standing machine, robust and efficient in cutting large metallographic samples.
For sample preparation and... |
|
|
 |
Industrial technician with experience in packaging machines, mining, ball mill, hammer mill, disintegrators, vibrating screens, conveyors, elevators threads of mugs, cells, classifiers, cyclones, filters kitchen candy caramels, mats, coolers, mixers ... |
|
|
 |
Brand: Filizola
Floor scale.
Brand: Filizola.
Model: ID-M 300/4.
Min = 2 kg.
Max = 300 kg.... |
|
|
 |
Brand: Martini
Vertical packaging.
Brand: Martini.
Model: M96LE.
Year: 2004.
Capacity: 1450 kg.
Voltage: 220 V-60 Hz-4 Kw-6 Bar.
Measures:
length: 3285 mm.
width: 1280 mm.
height: 2270 mm.
Used to pack long pasta noodles.
Note: Without the dry... |
|
|
 |
Brand: Nagema
Candy drop packer and grouper.
Manufacturer: Nagema.... |
|
|
 |
Vacuum/Floor Bundlig
automatically applies a filmstrip shrinkable plastic (PVC, polyethylene or Poliolefínico) to form multiple packaging.
To 50pçs per minute.... |
|
|
 |
Packer for lollipop boring... |
|
|
 |
Brand: Hansel Processing, Otto Haensel
Celofanadeira Otto Hansel.
Model Celomatt.
Put the cellophane kind portfolio in cartons or other.
... |
|
|
 |
Brand: Alfa Instrumentos
Industrial floor scale with roller table.
Approximate capacity: up to 500 kg.
Manufacturer | Brand: Alfa Instrumentos.
Equipment made of 304 stainless steel with embossed top.
Approximate dimensions:
Width: 900 mm x Length: 900 mm.
... |
|
|
 |
Brand: Alfa Instrumentos
Stainless steel 304 floor scale with ramp.
Manufacturer | Brand: Alfa Instrumentos.
Approximate capacity: up to 4,000 kg.
Year of manufacture: 2012.
Equipment operated intermittently for 8 years.
With a smooth top.
Approximate dimen... |
|
|
 |
Brand: Lobopack
Horizontal Flow Pack packaging Lobopack.
Model: A-100.
With variable pitch and photocell.... |
|
|
 |
Brand: Maicon Maras
Bullets soft floor/k12k * * chewable brand name: Muzammil Maras.... |
|
|
 |
Brand: Hansel Processing, Otto Haensel
Floor model HTN Brand tablets Otto Hansel, type R to chocolates, complete
Stopped Working in perfect condition... |
|
|
 |
Coffee vacuum package... |
|
|
 |
Brand: Nelpas
Volumetric rotary piston filler for filling small bottles.
Manufacturer: Nelpas.
Piston volume: 100 ml.
Minimum capacity: 30 ml (to be confirmed).
Automatic filling equipment with 4 mechanically driven dosing pistons.
Pneumatic automat... |
|
|
 |
Brand: Lawes
Filling machine with two bench top spouts.
Brand: Lawes.
Robust, mechanical cylinder filling system.
Equipment has motor and volume regulation by ruler.
Approximate cylinder dimensions:
Cylinder thickness: 5 mm.
Overall height of ... |
|
|
 |
Brand: Dedini
Silos for storing wheat flour.
Manufacturer: Dedini.
Approximate capacity: 100 tons / 165 m³.
6 carbon steel units with stainless steel internal coating.
Year: 2003.
Maximum internal pressure: 0.5 bar.
Equipment is in a covered and ... |
|
|
 |
Brand: FBR ELPO
Automatic aseptic filling machine.
Manufacturer | Brand: FBR ELPO. (Italy)
Model: RIEMPITRICE ASETTICA.
Type: ASI 1000/2.
Approximate productivity: 6,000 liters per hour.
Year of manufacture: 2001.
Intermittent operation: 15 years.
... |
|
|
 |
Components: Panasonic
Semi-automatic aerosol bag-on-valve (BOV) filling machine for cans.
Approximate capacity: 800 to 1,200 bottles per hour.
With two stages, the first stage being the filling of the propellant (compressed air) and the crimping, and the second stag... |
|
|
 |
Brand: Dedini
Silo for wheat flour.
Manufacturer: Dedini.
Approximate capacity: 25 tons.
Year: 2003.
They were used in the food industry for the production of biscuits.
Quantity: 6 wheat flour storage silos.
Equipment is in a covered and preserve... |
|
|
 |
Flour transport system.
To transport flour from the silo to the scales.
With control panel, vibrating sieve and flour dispenser.... |
|
|
 |
Brand: Dedini
Silos complete with structure / system for receiving, storing and transporting flour.
Year: 2003.
They were used in the food industry for the production of biscuits.
6 flour silos of 25 tons each.
5 silos of 165 m³ each.
1 sugar silo o... |
Others suggested equipment for you:
|
|
 |
Brand: Serpack
Components: Festo
Filling continues Stand Up Pouch stainless.
Brand Name: Serpack.
Model: SPK 200.
For filling: Olives, meatballs and other.
Presentation of the package: Sache Stand Up Pouch.
Yield: 35 ppm.
Supply voltage: 220 V-60 Hz 3 F
pneumatic syste... |
|
|
 |
Brand: Kawamac
Packaging/Filling of sachet Stand Up Pouch.
Brand name: kawamac.
Model: kws-180.... |
|
|
|
|
