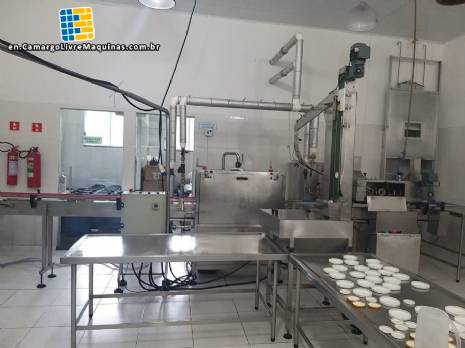

| Line for brine filling manual product insertion and automatic capping |
|
Line for brine filling, manual product insertion and automatic capping.
Composed by:
Glass bottle capper.
Model: US 60.
Application: automatic closing of glass jars (300g palm heart) with screwable metal lids.
Manufacturing material: AISI-304 stainless steel.
Layout code: A03.
Rated capacity: 60 packages per minute.
Approximate dimensions of the main unit (W x W x H): 500 x 2000 x 1700 mm.
Fully automatic continuous linear closing system.
Automatic lid releaser and positioner.
Pre-threading and cap preparation system.
Threader head with adjustment for pots height from 80 mm to 180 mm and 0 of lids ranging from 58 mm to 74 mm.
Steam supply system including injectors; modulating valve; trap; and condensate catcher.
Closing head actuation via SEW gearmotor.
Feeding and output conveyor for stainless steel platform pots; Conveyor drive via SEW gearmotor.
Height adjustment system via SEW gearmotor.
Feet with adjustable support shoes.
Automatic cap feeder.
Rated feeder capacity of 60 units per minute.
Reservoir for 1 box of lids (1500 units).
Feet with adjustable support shoes.
Magnetic elevator with magnetic pressure regulation.
Special non-stick conveyor belt.
Cap missing detection sensor.
Cap overflow detection sensor.
Mechanical cap picker.
Lid spout with adjustment for 58mm and 63mm and 74mm lids.
Cap return spout.
SEW gearmotor;
General finish G320.
Quantity: 01 unit.
DOUBLE TANK FOR BRINE PREPARATION AND ACCUMULATION 1000 LITERS EACH.
Driven by integrated pumps and mixers.
STAINLESS STAINLESS POT ENTRANCE CONVEYOR BELT.
With side guides in stainless steel with integrated motor.
BRINE FILLER DOSER IN CASCADE AND OVERFLOW.
In stainless steel, stainless steel snake model belt, driven by a gearmotor, cascade dosing by overflow; with centrifugal pump and brine reprocessing with preheating container, flow adjustment valves, controlled steam heating coil by WEG PLC villa.
THREADER AND COVER OF LINEAR STAINLESS POTS IN STAINLESS STEEL.
Feed preheated by steam capacity 40 pots per minute with height adjustment from 80 mm to 180 mm, lids ranging from 58 mm to 74 mm, automatic lid feeder with reservoir for 1 box of lids 1500 un with magnetic lift. |
|
|
|
|
|
|
|
