| Tanque misturador encamisado em aço inox 5.000 litros APV |
|
Stainless steel jacketed mixing tank.
Manufacturer | Brand: APV.
Information on the nameplate:
Approximate capacity: 5,000 liters.
Design pressure (kgf/cm²): body 1.2 | jacket 5.0.
Working temperature: Body 130 °C | jacket 120 °C.
Hydraulic test pressure (kgf/cm²): body 1.7 | jacket 7.0.
Working pressure (kgf/cm²): body 0.2 to 0.5 | jacket 4.0.
Test temperature: body and jacket at ambient temperature °C.
Year: 1991.
Empty weight: 1850 kg.
Approximate dimensions:
Total height with reducer: 3,970 mm.
Tank body height: 2,600 mm.
Leg height: 560 mm.
Outer diameter: 1,860 mm. |
Brand:
APV
|
|
|
|
|
|
Other similar equipment for research results
:
|
|
 |
Brand: MH Equipamentos
Misturador masseira sigma encamisado em aço inox.
Sigma com camisa e com dois braços.
Fabricante: M.H. Equipamentos.
Com estrutura em aço motor.
Equipamento passando por desmontagem completa, será verificado todos os itens de desgaste e r... |
|
|
 |
Jacketed stainless steel pressure reactor.
With motor, reducer and scraper shaft.
Approximate capacity: up to 200 liters.
For mixing homogenization of products such as cosmetics, chemicals, among others.
Equipment internally in stainless ... |
|
|
 |
Components: Cestari, WEG
Jacketed reactor stainless steel tank with mixing system.
Reactor tank for viscous foods, human cosmetics and pet cosmetics, sanitizing products and other products and industries that work with 304 stainless steel.
Approximate estimated total v... |
|
|
 |
Brand: Biasinox, Fortress, MVL
Line for manufacturing soft chocolate sprinkles.
Approximate production capacity: 24 tons per month.*
*considering 8 hours of work per day.
Line composed of:
- Stainless steel jacketed pan with internal steam system.
With carbon steel st... |
|
|
 |
Brand: Ricefer
Jacketed tank for electric heating.
Brand: Ricefer.
With electric heating system, two resistances.
With control panel, frequency inverter for motors, temperature control by sensor in the tank.
Two stirring systems.
Main system with sid... |
|
|
 |
Brand: Brasholanda
Storage tank.
Stainless steel.
Brand: Brasholanda.
Capacity: 1.500 L.
With lateral stirrer, nautical type.
Engine brand: Eberle.
With spray ball cip.
Total height with accessories: 2.80 m.
Width (diameter) with ladder and moto... |
|
|
 |
Brand: Plurinox
Jacketed mixing reactor tank made of 304L stainless steel.
Manufacturer | Brand: Plurinox.
Approximate capacity: 5,000 liters.
Model: T - PRO - CV - 3.24.0344.
Manufacturing date: 08/2020.
Standard: REF.ASME VIII.
Design temperature... |
|
|
 |
Brand: APV
Stainless steel mixing tank.
Manufacturer | Brand: APV.
Approximate capacity: 5,000 liters.
Data on the nameplate:
Design pressure (kgf/cm²): body 1.2 | jacket 5.0.
Working temperature: Body 130 °C | jacket 120 °C.
Hydraulic test pr... |
|
|
 |
Brand: APV
Stainless steel mixing tank.
Manufacturer | Brand: APV.
Approximate capacity: 5,000 liters.
Information on the nameplate:
Design pressure (kgf/cm²): body 1.2 | jacket 5.0.
Working temperature: Body 130 °C | jacket 120 °C.
Hydraulic ... |
|
|
 |
Brand: ALIC
Benchtop heated mixing reactor tank with jacket, made of stainless steel.
Manufacturer | Brand: ALIC.
Approximate volume: 30 liters.
Approximate internal dimensions:
Height: 310 mm.
Diameter: 380 mm.
Voltage: 220 V.
Benchtop reac... |
|
|
 |
Coated dragee mixer with stainless steel bowl.
Approximate capacity: 100 liters.
Equipment under refurbishment.... |
|
|
 |
Benchtop mixing reactor tank heated by jacket and electric resistance.
Approximate total volume: 28.9 L.
Internal dimensions:
Internal height: 300 mm.
Diameter: 350 mm.
Benchtop reactor for cosmetics, food, chemical and other applicati... |
|
|
 |
Brand: Fox Caldeiraria
Stainless steel storage tank with a conical bottom.
With side ladder and guardrail.
Manufacturer | Brand: FOX Caldeiraria Industrial.
Approximate capacity: up to 30,000 liters.
Tank diameter: 2776 mm.
Total tank height: 7712 mm.... |
|
|
 |
Stainless steel mixing tank for product agitation.
With homogenizing emulsifying agitator.
Lower product outlet.
For food industries (such as mayonnaise, sauces, condiments, creams, pastes), cosmetics, and pharmaceuticals.... |
|
|
 |
Stainless steel jacketed tank with resistance heating.
Approximate capacity: 1800 liters.
Total height: 4300 mm.
Height of tank body: 1850 mm.
Diameter: 1120 mm.... |
|
|
 |
Components: SEW-Eurodrive
Polymer tank with stainless steel shaft.
Comes with diaphragm pump.
It was in a cosmetics industry.
With SEW motor.
Two units.... |
|
|
 |
Brand: BB Inox
Insulated rectangular stainless steel tank.
Cheese tank.
Manufacturer | Brand: BB Inox | B&B Inox.
Approximate capacity: 3500 liters.
Manufactured on: June 2019.
Quantity: 3 units.
Approximate internal dimensions:
Height | Depth:... |
|
|
 |
Stainless steel jacketed mixing tank with resistance heating.
Approximate capacity: to be confirmed.
With agitator with 0.75 HP WEG motor.
Tank with straight bottom.... |
|
|
 |
Stainless steel tank for storage and agitation.
Approximate capacity: 2000 liters.
With airtight lid.
With side product outlet.
Approximate dimensions:
External height: 2900 mm.
Internal height: 1740 mm.
Internal diameter: 1280 m... |
|
|
 |
Brand: Controltech Thermoindustrial
316 L stainless steel tank, explosion-proof.
Manufacturer: Controltech Thermoindustrial.
Capacity: 120 L.
Empty weight: 80 kg.
Full weight: 200 kg, depending on density.
Single-piece lid.
Nautical-type axle.
Mobile support with c... |
|
|
 |
Storage silo tank with conical bottom in stainless steel.
Transfer tank with support and wheels.
Approximate capacity: 20 liters.
Approximate measurements:
Diameter: 300 mm.
Height of straight part: 290 mm.... |
|
|
 |

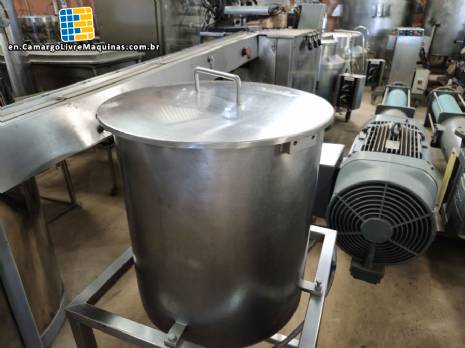

Stainless steel tank with bottom outlet.
