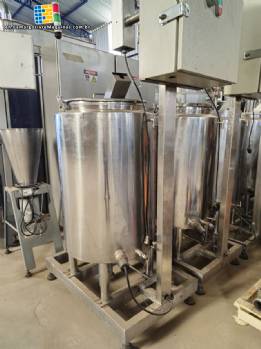

| 90 liter stainless steel jacketed melting tank with pump |
|
Stainless steel jacketed melting tank.
Approximate capacity: 90 liters.
It was used in a chocolate granulate line as a fat melter.
With pump and panel.
With conical bottom.
Product outlet at the bottom.
With dosage control and temperature control.
Approximate measurements:
Diameter: 430 mm.
Height of straight part: 600 mm.
Panel components:
WEG MDW C16 circuit breaker.
WEG MPW25 motor circuit breaker.
WEG CWM12 10E contactor.
WEG CWAO.22E minicontactor. |
|
|
Components:
