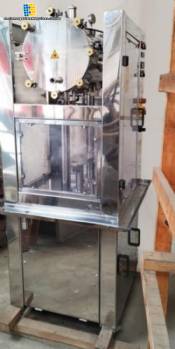

| Equipment for batching and pasteurizing draft beer and bottle washer/labeler. |
|
Beer bottling equipment.
Composed of:
- Semi-automatic stainless steel beer keg washer and filler.
Approximate capacity: one keg in approximately 3 minutes.
Features:
· Stainless steel tank with heating element for alkaline solution from 65º to 70º C.
· ¾” stainless steel ball valve for alkaline solution recirculation.
· ¾” stainless steel ball valve for waste disposal.
· Digital thermometer controller.
· Centrifugal pump with stainless steel impeller, 1 HP motor with a capacity of 7,000 l/h for alkaline solution injection and rinsing with water.
· Analog pressure gauge from 0 to 5 kg for pressure indication.
• ¾” stainless steel monobloc valve for beer flow control.
• ¾” stainless steel monobloc valve for CO2 control.
• Ball valve for equalizing CO2 and beer.
• Stainless steel keg valve for filling the keg.
- Stainless steel bottling machine with 3 nozzles for bottles of carbonated beer beverages.
Manufacturer | Brand: MEC BIER.
For 350 ml | 600 ml bottles.
Features:
• Device for rinsing 12 bottles at a time.
• Stainless steel tank for rinsing solution.
• Stainless steel interconnecting piping for the rinser (1”).
• Electric conveyor belt.
• Electronic panel with PLC that controls pressurization and filling operations.
• Stainless steel ball valve for solution recirculation.
• Microprocessor controller to pulse the pump during washing.
• Centrifugal pump for injecting the rinsing solution.
• Stainless steel ball valve for mains water inlet and disposal.
• Stainless steel inline filter for the rinsing solution.
• 1” stainless steel beer inlet connection.
• Stainless steel ball valve with pneumatic actuator that controls the beer inlet.
• Bottle filler with 3 nozzles.
• Insulated surge tank for beer.
• 3 pneumatic pistons for positioning the filling nozzles.
• Support to position the 3 bottles for filling.
• Solenoid valve for beer flow control.
• Solenoid valve for CO² control.
• Ball valve for controlling CO² and beer output.
• 1 Pneumatic piston to push bottles to the cap sealer.
• Manual cap feeder.
• 1 Pneumatic piston for positioning and cap sealing.
• Structure and base of the pneumatic pistons in stainless steel.
• 1” stainless steel SMS connections.
• 25-foot air compressor.
- Bottle filling machine with 2 nozzles.
Manufacturer | Brand: MMC TEC.
- Stainless steel pasteurizer for beer.
Features:
• Capacity for 550 bottles.
• Stainless steel tank with 4 feet, with lid to protect against possible bottle bursting.
• Rotating upper spray ring for rinsing in stainless steel.
• Control panel.
• 1” stainless steel piping.
• Pasteurization temperature: 60 ºC.
• Heating system via steam.
• Cooling temperature: Ambient.
• Cooling via industrial water.
• Electronic temperature controller.
• Hydraulic pump for hot/cold water recirculation.
- Bottle and can washer/rinser.
Features:
• Device for rinsing 12 bottles at a time.
• Stainless steel tank for the rinsing solution.
• Stainless steel interconnecting piping for the rinser (1”).
- Semi-automatic labeling machine with date coder for cylindrical bottles.
Manufacturer | Brand: MAQMUNDI.
Features:
• Application of label or label and back label in a single cycle.
• Label stop accuracy of approximately 0.5 mm.
• Placement accuracy of approximately 1.5 mm.
• Single-phase 220 Volt power supply.
• With hot stamping date coder. |
Brand:
Maqmundi, Mec bier, MMC TEC
|
|
|
|
|
|
