| Line for the production of cremosinho |
|

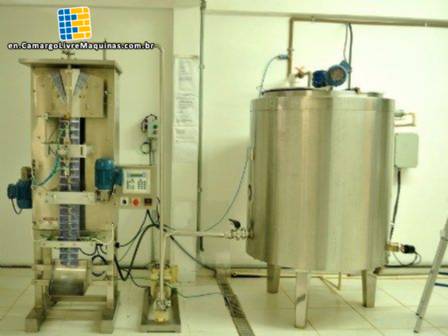

Set of machines for manufacture of Cremosinho yellow.
-IMAAJ vertical automatic Filling mounted on stailess steel 304, self-supporting.
IMAAJ EV Model 300 BP.
To semi-liquidos products packaging (pulps) through positive pump, bottled in flexible packaging of 300 mm wide and
volume of 100 to 1000 ml.
estimated production is up to 2000 hours for 1000 ml units and 3000 for 100 ml.
features:
-Structure in 304 stainless steel, sanitary finish.
-operational command for CLP with access via interface (MMI)
-germicidal Lamp (UV) disinfection installed coil compartment film.
-welding and cutting by electrical pulse.
-positive helical Pump dosing.
-interconnection/pump set.
-specific Software for full operator/machine interaction.
-to date hot stamping with 3 lines; (LOT/FAB/VAL).
-Photo-cell for centralisation of packaging.
-sensors for monitoring of operations.
-White coil motor synchronized installed in totally enclosed compartment.
fermenteira LAMBARINOX yogurt type Tank water bath, built entirely in stainless steel AISI 304 with vertical cylinder format with cover bi-match, with electric heating, it also has a built-in dispenser ice and cold water to drain to allow its reuse , steam, steam and thief to return output of excess water. Its isolation is made with rock wool, and the machine supported on conical legs with levelling screw.
fermenteira is equipped with agitator and powered by geared motor bathed in permanent grease, powered by three-phase current.
features angular front thermometer with graduation from 0 to 120° C and 2 output rose SMS with 500 L capacity. |
Brand:
Imaaj, Lambarinox
|
|
|
Main applications:
Food industry
Manufacture of dairy area, milk
Manufacturing pharmaceutical field, drugs / pills
Yogurt manufacturing
|
|
Other similar equipment for research results
:
|
|
 |
Brand: Piróg
Line for the production of Nhá Benta Dan Top.
Brand: Piróg.
With blower to remove excess product.
Dimensions of the cover: 2.20 m high x 160 m wide x 1.45 m long
Mat dimensions: 895 mm width.
With motors, water pump and electrical pane... |
|
|
 |
Brand: Jaf Inox
Complete line for the production of bean to bar chocolate.
Brand: JAF Inox.
Approximate capacity: 10 kilos.
Composed by:
Peeler 5 decks with silo.
Cocoa seed roaster.
Homogenizing shell.
5 roller refiner.
Transfer pump.
Com... |
|
|
 |
Brand: Hebleimar, Piróg
Line for the production of sweets like "denies tit", Dan Nhá.
consisting of:
2 drip trays of marsmallow with 14 burners each.
cooling tunnel and chocolate brand cobrideira Piróg.
Measures: width 1.10 m by 10 m length and height 1.25 m.
widt... |
|
|
 |
Brand: Cassan Máquinas, Limaq
Laminating line for the production of cereal bars, protein bars, banana candy, guava candy, dulce de leche tablets, among others.
Manufacturer: Limaq and Cassan.
Year: 2025.
Line composed of:
Cooking/mixing tank.
Manufacturer: InoxMar.... |
|
|
 |
Brand: Dixie Canner, Vinox
Brewery factory with tri-block kitchen.
Complete line for beer and draft beer production.
Approximate capacity: up to 15,000 liters.
Year of manufacture: 2018.
For all types of beers and draft beer.
An earth filter was added to optimiz... |
|
|
 |
Brand: Martini
Machine line for the production of Martini diapers.
Production capacity: 120 pieces per minute.
Refurbished with cardan control.
Machine composed of: cellulose shredder, gel applicator set, 2 electrical control panels, calender set.
Leg e... |
|
|
 |
It manufactures a production line for zipper sliders.
The zipper slider factory is responsible for producing sliders, which are the metal parts responsible for opening and closing the zipper when they are slid over the teeth.
Slider Production ... |
|
|
 |
Line for the production of adult and children's surgical masks.
For disposable masks with 3 layers.
Approximate production: 100 to 130 units per minute.
Manufacturer: Chuang Jingrui Electronics (China).
Model: CR - 913A.
Year of manufa... |
|
|
 |
Brand: KHS, Mojonnier, Sabroe, Schulz, Ziemann Liess
Complete line plant for the production of beer and soft drinks.
Line composed of:
Bottle washer.
Manufacturer: Ziemann-Liess / KHS.
With 32 positions.
Year: 1994.
With tank system.
Linear rinser for bottles.
Nominal production... |
|
|
 |
Brand: Limerpak, MRE Industrial
Line for the production of cosmetics.
Composed by:
- Semi-automatic countertop filling machine with 2 stainless steel spouts.
Manufacturer: MRE Industrial.
- Reactor in stainless steel.
Manufacturer: MRE Industrial.
Approximate cap... |
|
|
 |
Complete line for the production of disposable and surgical masks.
Assembly production capacity: approximately 50,000 units per day.
Line composed of:
- Machine to manufacture surgical mask body.
Manufacturer Origin: China.
- PFF2 strapp... |
|
|
 |
Brand: Carnevalli
Complete line for the production of PVC conduits.
Manufacturer: Carnevalli and Santa Maria.
Line composed of:
- Extruder.
- Bathtub.
- Puller.
- Carimbeira.
- Threader.
- Aggregator.
- Hammer Mill.
- Polycut.
- Coolin... |
|
|
 |
Complete line for the production of peanut and chocolate-covered Japanese with quality recipe... |
|
|
 |
Microbrewery Beer Production Line
Manufacturer: CBB-Biomassa e Bioprocesso Ltda.
Equipment Manufacturing Year: 2024
Active Operating Time: 24 months
Capacity: 600 to 750 liters of ready-to-brew craft beer per month
Composed of: mill, s... |
|
|
 |
Brand: Biasinox, Fortress Technology, MVL
Line for manufacturing soft chocolate sprinkles.
Approximate production capacity: 24 tons per month.*
*considering 8 hours of work per day.
Line composed of:
- Stainless steel jacketed pan with internal steam system.
With carbon steel st... |
|
|
 |
Brand: G.Mazzoni, Mazbra Mazzoni, Mazzoni, Mazzoni LB
Complete vertical bar soap manufacturing line.
Manufacturer: G.Mazzoni.
Estimated soap production without load minus vacuum: 4,500 kg/h
Estimated soap production with load plus vacuum: 5,000 kg/h.
Current format: 200 g bars.
Production... |
|
|
 |
Brand: Claumaq
Machines for soap manufacturing.
The soap line was focused on meeting and outsourcing the production of soaps for hotels.
Maximum nominal production of the extrusion: 500 kg/h, depending on the size of the soap.
Production recorded for the s... |
|
|
 |
Brand: Jones
Press for SOAP formatting.
Brand: Jones (Ohio).
-capacity 160 units/minute.
-press Control Board.
-Motor and reducer.
-Burr cutter.
The machine works in a line of SOAP g. Mazzoni for approximately 1000 kg production time.
This equi... |
|
|
 |
Brand: Netzsch
Components: Siemens
Horizontal agitator mill with discs and balls for wet grinding and jacketed dispersion.
Manufacturer: Netzsch (NETZSCH-Feinmahltechnik GmbH).
Model LME 100 K, current Discus 100 family.
Nominal flow rate: to be confirmed.
System 574.67.
... |
|
|
 |
Brand: Cozzine, Inox Design, RISCO SpA
1.675 / 5.000
Production line for sausages such as mortadella, linguiça, salami, fresh meats, and others for meat processing plants, meat industries, and sausage manufacturers.
Set of machines used in the industrial manufacturing process of morta... |
|
|
 |
Automatic L-sealer with shrink tunnel for end-of-line automation.
Composed of:
- Automatic L-sealer packaging machine.
Model: FL - 5545 T BB.
Year: 2010.
Sealing bar: 550 x 450 mm.
With automatic presence sensors and high productivi... |
|
|
 |
Brand: APV SPX, SPX, Tetra Pak
Complete UHT ultra-pasteurizing line with aseptic filling line for long-life liquid food products.
For UHT thermal processing and aseptic filling of liquid food products, such as meat and chicken broths, vegetable broths, soups, culinary bases, sa... |
|
|
 |
Brand: Pronatec, Pugliese
Industrial company manufacturing line for recycling and production of LDPE.
Approximate capacity: up to 50 tons per month.
For washing, recycling, film, bags and bubble wrap made of LDPE.
Composed of:
- Extruder for hose or granulation fo... |
|
|
 |
Brand: Camposcal, Mecamau
Production line for creamy and pasty sweets, jams, hard and soft candies.
Approximate production capacity: up to 5 tons per month.
Composed of:
- 2 vacuum cooking vats for sweets with a 250-liter top feeder/pre-tank.
Manufacturer | Brand:... |
|
|
 |
Brand: Chen Yueh Machinery Co., Ltd.
Automatic line for molding and cooling gummy candies.
Manufacturer | Brand: Chen Yueh Machinery Co., Ltd.
Automatic dosing system for product deposition into molds.
Approximate capacity: up to 6,000 to 10,000 candies per hour.
Features a ... |
|
