| Netzsch helical positive pump |
|

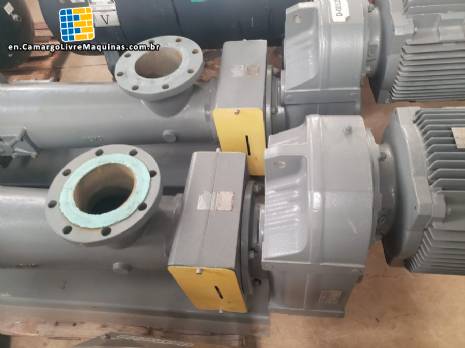

Positive helical pump 70,000 liters per hour | 70 m³ per hour.
Transfer / transport pump.
Manufacturer: Nemo Netzsch.
Type: NM090BY 01 L 07 J.
Quantity: Two pumps, one with forced ventilation, the other not shown in the photos.
Year: 2018.
Approximate width of product inlet and outlet: 210 mm.
Sew-Eutodrive induction motor, 30 HP.
Possible specifications according to type NM090BY 01 L 07 J:
Housing: Gray cast iron.
Rotating parts: AISI 420 stainless steel.
Impeller: AISI 420 stainless steel, UM40, extra polished.
Joints: Type J, with protective sleeve (J), NBR.
Direction of rotation: Counterclockwise.
Installation: Horizontal.
Suction port: Flange, 6", ASME B16.1 #125, FF, 1.a.1 (central vertical).
Pressure port: Flange, 6", ASME B16.1 #125, FF, 4.a.0 (central).
Product to be pumped: Water.
Pumping temperature: 30 °C.
Density: 1000 kg / m3.
Design flow rate: 70 m3 / h.
Nominal flow rate: 70 m3 / h.
Suction: - 2.5 mca.
Gauge pressure: 4 bar.
Rotation: 241 rpm.
Absorbed power: 21 HP.
Power supply voltage: 220 V.
|
Brand:
Netzsch
|
|
|
|
|
|
Main suggestions:
|
|
 |
Brand: Netzsch
Components: SEW, SEW-Eurodrive
316 stainless steel helical pump.
Manufacturer | Brand: Netzsch.
Model: NM053SY02S14.
Flow rate: 10 m³/h.
For transferring liquid products. It was used for invert sugar.
Year: 2003.
Operation: 10 years with overhauls.
Stoppage: 5... |
|
|
 |
Brand: Netzsch
316 stainless steel helical pump.
Manufacturer | Brand: Netzsch.
For transferring highly viscous food products at temperatures up to 90°C.
Model: NM063SY02514V.
Flow rate: 9.46 m³/h.
Pumping temperature: 90°C.
316 stainless steel ca... |
|
|
 |
Brand: Envase Mais, Fujinox, Marburg, Nelpas, Netzsch, Real
Complete line for filling bottles and jars.
Composed of:
– Bottle positioner.
Manufacturer | Brand: Fujinox.
Model: L - 300.
Year: 2014.
– 6 conveyor belts.
Manufacturer | Brand: Fujinox.
– Automatic labeling machine for cylin... |
|
|
 |
Brand: Netzsch
Components: WEG
Positive helical pump.
Transfer / transport pump.
Manufacturer: Netzsch.
Year: 1989.
WEG motor with 1.5 HP / 1725 rpm.
1.1/2 inch inlet and 3/4" outlet.... |
|
|
 |
Brand: Netzsch
Components: WEG
Helical positive pump.
Pump for transfer/transport.
Manufacturer: Nemo Netzsch.
Type: NE 30 A.
Year: 2001.
Components:
1 HP three-phase WEG induction motor.... |
|
|
 |
Brand: Netzsch
Components: WEG
Helical positive pump.
Pump for transfer/transport.
Manufacturer: Nemo Netzsch.
Type: 2 NE40 A.
Year: 1994.
Components:
4 HP three-phase WEG induction motor.... |
|
|
 |
Brand: Netzsch
Positive helical pump 70,000 liters per hour | 70 m³ per hour.
Transfer / transport pump.
Manufacturer: Nemo Netzsch.
Type: NM090BY 01 L 07 J.
Quantity: Two pumps, one with forced ventilation, the other not shown in the photos.
Year: 2... |
|
|
 |
Brand: Netzsch
Components: WEG
Positive helical transfer pump.
Brand name: Netzsch.
Internal stainless steel equipment.
Components:
Weg electric motor.... |
|
|
 |
Brand: Netzsch
Positive helical transfer pump.
Manufacturer: Nemo Netzsch.
Model: NM015 BY.
Characteristics:
- Maximum Pressure (bar): 24.
- Maximum Capacity (m³/h): 0.72.
- Rotation (rpm): 800.
Approximate dimensions:
Height: 380 mm.
Wid... |
|
|
 |
Brand: Netzsch
Positive helical pumps.
Transport / transfer pumps.
Manufacturer: Nemo Netzsch.
Type: NM090BY 01 L 07 J.
Year: 2018.
Quantity: 2 units, one with forced ventilation, the other without.
Possible specifications according to type NM090B... |
|
|
|
|
