| Pressure reactor for manufacturing of hormones Pharmainox |
|

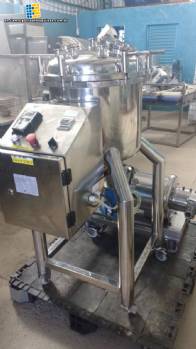

Pressure reactor for manufacturing of hormones.
Brand Name: Meteor, Pharmainox.
Specifications:
Useful / total capacity: 50 L.
Working pressure: 0.5 kgf / cm².
Design pressure: 1.0 kgf / cm².
Maximum permissible working pressure at (T.P): 0,5 kgf / cm².
Working temperature: 80 degrees Celsius.
Design temperature (T.P) 120 degrees Celsius.
Material: AISI 316 L.
Estimated weight of empty equipment: 96 kg.
Installed Power (Anchor / Agitator): 22 Kw.
Voltage: 380 V.
Rotation (Anchor / agitator): 1750 R.P.M.
Internal finishing: Mechanical polishing + electropolishing GR 320 / Ra <0.35.
Exterior finish: Mirrored mechanical polished gr 220.
Year: 2014.
Category: V.
Standard: ASME VIII Division 1 - Edition 2010 AD 2011.
Thermosyphon for reactor.
Brand: Pharmainox.
Useful capacity: 4 L.
Working pressure - Int / Ext: 0.75 kgf / cm².
Design pressure - Int / Ext: 1.1 kgf / cm².
Working Temperature - Int / Ext: 80 degree celcius.
Design temperature: - Int / Ext: 120 degree celcius.
Material of manufacturing: AISI 304.
Internal / external finishing: GR 320 + mechanical polishing.
Year: 2014.
Empty weight: 3.8 kg.
Components:
Weg electric motor.
Siemens Sinamics.
Controller Novus N1040. |
