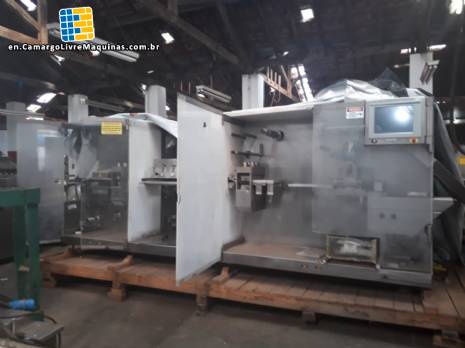

| Blister packaging machine Oystar Fabrima BP 5 |
|
Machine: The Oystar Fabrima.
Year of manufacture: 2008.
Model: BP 5.
Vision system.
The PLC program is running normally.
Note: Video of binding machine, panel operation, bubble forming modules operation, aluminum film press, mat, coils and scrap cutting (5 videos).
The interface and the industrial computer responsible for the interface work correctly, communication between PLC and computer is also ok.
The machine have high technologies such as:
- Optical fiber.
Servants, morotes.
- Festo pneumatic valves.
The command is Allen Bradley.
Conventional Engines Sew.
Reducers as well.
Inspector of blisters with tablets / tablets / capsules, pre - sealing Altec, model Pharma Inspector lite.
Inspector Overview:
- Optical cabinet.
- Handling device.
- Office cpu.
- Software program Phama Inspector.
- USB external connections (power and camera signal).
- Female 3-pin connector to power optical drive illumination.
- Inspections and tests to be carried out:
Inspection of product presence, absence, color and broken with lack.
Production:
Production: 45 cycles
150 Blister / minute
Second manual production:
Minimum: 22 cycles / minutes *
Maximum: 60 cycles / minutes *
Maximum: 35 cycles / minute *
* Varies with formatting.
Formats:
Width of the forming film: 170 mm.
Cover film width 160 mm.
External diameter of the forming coil: 400 mm.
Internal diameter of the forming coil: 70 to 76 mm.
Coil outer diameter: 240 mm.
Coil inner diameter: 70 to 76 mm.
Depth with preforming depending on the package: up to 10 mm - up to 25 mm.
Useful formations are: 110 mm x 150 mm.
Continuous cut with belt under the cut.
Technical film: PVC + ALU with few modifications ALU + ALU, machine can work with aluminum film.
Manual / NR -12.
In excellent condition with only 2 years of use.
Measures:
5 meters long.
2 meters wide.
2.30 meters high.
With manuals and technical catalogs:
Factory Tal View Machine Edition, installation guide, Rockwell Automation, manual and cd.
Cds:
- KEPServer Enterprise, 5 cds VersaView user interface, system support, system accessories / cloning.
Manual PowerFlex and cd powerflex 4 frn 5 and cd of technical information.
Manual Sew Eurodrive Reducers.
Ultra 3000 digital servo drives installation manual.
Installation guide:
- Compact expasion power supplies
- Compact 24 v dc Sink / Source input module.
- Compact 1769 - of2 (series b or later) analog output module.
- Compact solid state 24 v dc source output module.
- 1768 Compact Logix power supplies.
- Compact i / o high speed counter module.
- Compact logix ether net / ip communication module.
- Compact Logix Sercos interface module.
- Fiber Optic cable installation.
There are manuals that were part of the production system and equipment accessories to the machine.
The mechanical documentation has:
Operating manual with the following index:
- Personal safety.
- Technical safety measures.
- Security guards.
- emergency button.
- flashing mode.
- basic safety instructions.
- conditions of the machine.
- qualification.
- organization.
- machine safety.
- aid in the event of an accident.
- transport and alignment.
- Checking the request.
- carrying the machine.
- assembly and alignment.
- first cleaning.
- connections.
- Electrical connections.
- Compressed air connection.
- technical description.
- technical data.
- list of products.
- Blister design.
blister 1.
- design and operation.
- flashing mode.
- emergency button.
- work stations.
- operating diagram of the machine.
- location of the stations.
- Film coil forming.
- heating station.
- training station.
- Training film stretcher.
- product feed.
- manual feed.
- Planetary stirrer.
- aylward feeder.
- suction system.
- vision system.
- Product sensing sensor on the feed guide.
- Coverage Film Unwinder.
- photocell.
- Film splicing detector.
- Screening detector film training.
- Cover film splicing detector.
- sealing station.
- Film transport system and cooling.
- cutting station cutting station.
- retail rewinder.
- Retractable drop-in receiving mat.
- counter chech sensors.
- blister individualizer.
- transfer belt.
- transfer of blisters from the transfer belt.
- maintenance and service plan.
- general.
- synchronization run.
- handling and installation.
- Storage transport packaging.
- Cleanliness and appearance.
- service.
- cleaning.
- lubrication.
- adjustment points.
- zero point.
- Temperature calibration.
- exchange of formats.
- Movie Film Winder
- Training film winder.
- heating station.
- Thermocouple exchange.
- change the fuse.
- exchange of resistance.
- training station.
- formation of the cover film.
- alu-alum formation.
- procedure for the evaluation of training.
- stretcher of film of the formation station.
- manual or automatic feeding.
- suction system.
- change of guides.
- food area.
- pecking area.
- Cutting area.
- positioning of the photocell sensor.
- positioning of the photocell.
- sealing station.
- procedure for sealing evaluation.
- procedure for unlocking the sealing station.
- Film transport system.
- Fixed clamp or mobile sealing station.
- pecking station.
- cutting station.
- Changing and adjusting the flat mat belt.
- exchange of springs.
- life of the spring assemblies.
- access to the mechanical part behind the electrical panel.
- scheme of passage of the formation and cover film.
- procedure for replacing the ball collar assembly in forming and sealing stations.
- control station.
- turn on the machine.
- Switch off the machine.
- passwords.
- main screen.
- screen parameters.
- production.
- heating.
- machine.
- programmable.
- calibration.
- Screen maintenance.
- digital inputs and sound.
- Forced exits.
- configuration.
- configure workstations.
- temperature calibration screen.
- shift.
- analog.
- operation screen.
- Operation screen with flashing.
- recipe screen.
- warning messages.
- pneumatic digrams.
- spare parts.
- Spare parts.
The machine has little uptime, and was correctly stored, protected from malfunctions. |
Brand:
Fabrima, Masipack, Oystar
|
Components:
Allen-Bradley, Altec, Festo, Rockwell, SEW
|
Main applications:
Food industry
Manufacturing pharmaceutical field, drugs / pills
|
|
Main suggestions:
|
|
 |
Brand: Noah
Automatic blister packaging machine for manufacturing blister cards.
Manufacturer/brand: Noah.
Model: DPD/140.
Year: 09/2023.
Voltage: 380 V.
Frequency: 50 Hz.
The equipment has not been used.
Uses transparent vacuum film.
Wei... |
|
|
 |
Brand: ACG, Almapal, Pam Pac
- Blistadeira.
- Brand: Pam Pac.
- Model: Cartoblis.
- Machine for manufacturing blister packs / medicine trays.
- It has tool set for different sizes and formats.
- Excellent condition.
- Machine formatted to work with alu + PVC.... |
|
|
 |
Brand: Selovac
Automatic blister thermoforming machine.
Blister forming and sealing machine.
Manufacturer | Brand: Selovac.
Model: 220 Plus.
Includes condom tooling.
Approximate production: 189 pieces/minute.
The product is manually fed onto the c... |
|
|
 |
Brand: Selovac
Components: Mitsubishi
Automatic blister thermoforming machine.
Blister forming and sealing machine.
Manufacturer | Brand: Selovac.
Model: 220 Plus.
Includes condom tooling.
Approximate production: 189 pieces/minute.
The product is manually fed onto the c... |
|
|
 |
Brand: Blipack
Components: Allen-Bradley, Delta, WEG
Thermoforming blister packer for capsule and tablet blisters.
With electronic control and bath retrofit.
Automatic blister machine with 304 stainless steel casing.
Manufacturer: Blipack.
Model: 203.
With intermediate station for finish... |
|
|
 |
Brand: Cam, MG ferramentais
Blister forming tool molds blister CAM blister machine.
Tools cutting knives 4 CAM blister.
Guides for blister CAM machines.
Approximate dimensions of training tools:
Width: 320 mm mm.
Height: 165 mm.
Manufacturer brand: MG Industri... |
|
|
 |
Brand: Fabrima, MG ferramentais
Blister molds blister forming tool.
Approximate tooling dimensions:
Width: 170 mm.
Height: 110 mm.
For machines type Fabrima UPS 300, Fabrima Blisterflex.
Manufacturer brand: MG Industria e commerce for packaging equipment LTDA.
Too... |
|
|
 |
Brand: Blipack, MG ferramentais
Blister molds blister forming tool.
Tool dimensions:
Width: 170 mm.
Height: 80 mm.
Depth: 24 mm.
For blipack type machines.
Manufacturer brand: MG Industria e commerce for packaging equipment LTDA.
Tools for:
Spherical tablet:... |
|
|
 |
Brand: Ishida, Tecnor, Uhlmann
Complete line of pharmaceutical packaging for solids.
It can be used independently or in a continuous line.
Line composed of:
- Universal automatic feeder.
- Automatic blister.
Manufacturer/brand: Uhlmann.
Model/type: UPS 300.
- ... |
|
|
 |
Machine for candy to put in the bag
Mixer with two axles
complete line of Dairy
Tube
Packinghouse to 15 Kg
3-wire machine mechanical Stretcher screens with a maximum capacity of 40 cm, 4 x 4 Carousel machine
machine to make baby socks, ... |
|
|
 |
Brand: Fabrima, IWK
Automatic blister packaging machine for manufacturing aluminum + PVC blister cards.
Manufacturer: Fabrima IWK.
Model: Blisterflex.
Year: 2005.
Original equipment, available for on-site testing.... |
|
|
 |
Brand: Garvens Automation, Ima, Markem-Imaje, Uhlmann
Components: Nordson
Automatic line for blister with encartuchamento.
For high productivity.
Line consisting of:
Blistadeira.
Brand: IMA.
Model: C 95.
Automatic packing machine.
Brand: IMA.
Model: A 95.
Printer.
Brand: Markem Image.
Model... |
|
|
 |

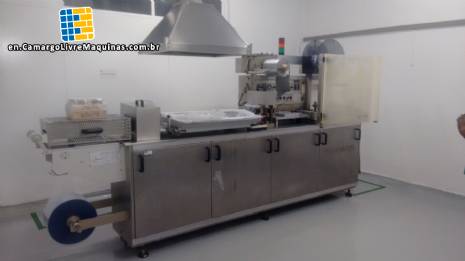

Brand: Blipack
Blister packaging machine.
Brand Name: Blipack.
Accompanies set of tools.... |
|
|
 |
Brand: Fabrima
Blister packing machine.
Brand Name: Fabrima.
Model: Blisterflex.
Year: 1998.
Equipment for pvc / alu.
Production speed: 50 cycles / m.... |
|
|
 |
Brand: Tesoura
Automatic thermoformer, filling and Capper of blister.
Equipment makes the formation of blister packing for heating a PET plate, frame her for blowing,
after filling system (for slurries and liquids) then undergoes a Capper/vacuum
and finally p... |
|
|
 |
Brand: Fabrima
Tablet blender.
Brand Name: Fabrima.
Model: M301-PP3402.
Year: 2004.... |
|
|
 |

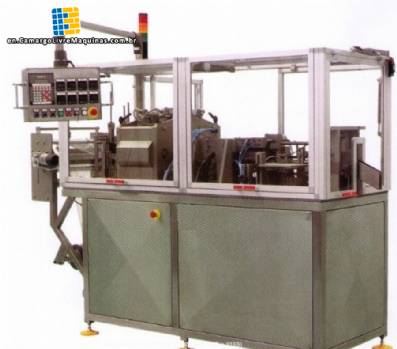

Brand: Mashiba
Blister blister
Manufactures blister using coil of plastic material (PVC, PET, etc) to make
liquid product vertically.
Branch of production, chemical cosmetic, veterinary, food, all products mono use
Capacity: all small volumes and maximum ... |
|
|
 |

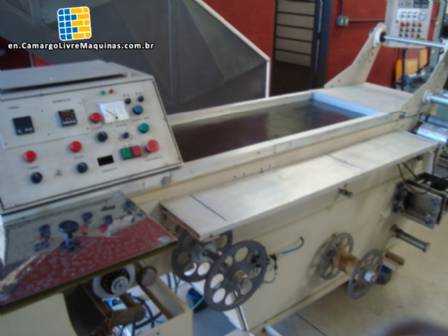

Brand: Pharmapack
Blender.
Brand: Pharmapack.... |
|
|
 |
Components: Delta, Fluir, JNG, Ls, Metaltex

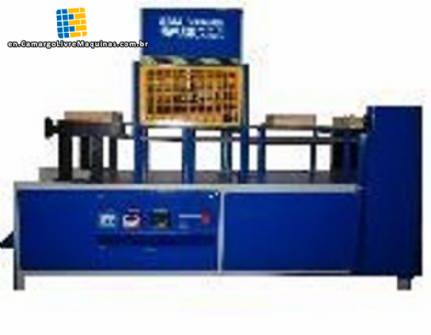

Blister sealer for chain and belt.
Machine to seal the back of the plastic blister, with mat to insert the materials, feed the product with packaging, and automatic sealing press.
Components:
Delta VFD - E.
Keys.
JNG.
Mech.
Ls.
... |
|
|
 |
Brand: Riva
Compressor rotary press tablets.
Brand Name: Riva.
Model: D-14.
Equipment imported from Argentina.
Machine in excellent condition.... |
|
|
 |

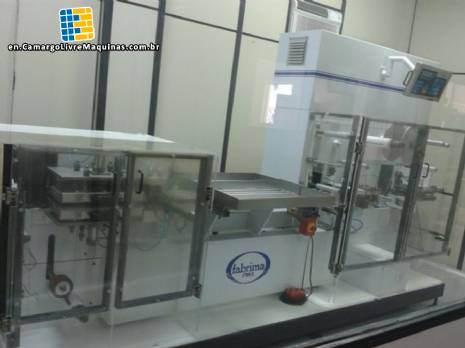

Brand: Fabrima
Fabrima Blisterflex Blister Packaging Machine.
Capacity: 120 blisters per minute.
Equipment in good condition, all training stations, sealing and cutting systems overhauled. Original factory electrical panel.
Productive capacity – Maximum sp... |
|
|
 |
Brand: Fabrima
Complete line for blisters.
Fabrima brand.
Composed of a 300 L UPS packaging machine, all cabined, with blister transfer belt, feeder, CP 230 cartoner, with folder and inserter, G.U.K brand, OCS weighing system and self-adhesive cartridge seali... |
|
|
 |

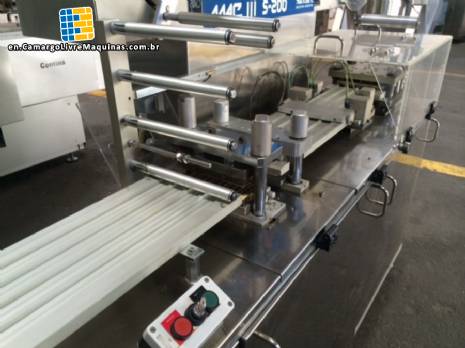

Brand: Mario Cricca
Emblistadeira automatic.
Mario Cricca Brand.
Model S-200.
Production (size 40 x 90 mm): 200 blister per minute
base Material: PVC, PVDC, PVC-PVC, aclar PP, ALU/PVC etc.
205/maximum diameter: 550 mm.
cover Material: AL, AL SOFT, MULTILAYER... |
|
|
 |
Brand: Fabrima, Masipack
Blisterflex fabrima
98 x 39 mm Blister
60000 Approximate 8 hours for packaging blister in dragees.
Equipped * tooling k12k * year of manufacture: 1997.... |
|
|
 |
Brand: Brawel
Vacuum 300 x 400 mm area still Line Blister
-pneumatic cylinder to start sealing plate
-P.I. temperature control D to the k12k *-* continuous sealing System for Pur mat
-Control by PLC with HMI software
-requires no operator for withdrawal of... |
Others suggested equipment for you:
|
|
 |
Dryer Spray Dryer in stainless steel.
Drying capacity between 100 and 150 kg hour.
It has nozzle because it is high pressure.
It was used in the food industry.
Drying capacity between 100 and 150 kg hour.
Unbranded equipment was assemb... |
|
|
 |
Brand: Tirelli
Linear filling with 4 nozzles.
Brand: Tirelli.
Model: GVJA.
Machine to work on speed.
Imported equipment, great condition, has little time before their date of manufacture.
Sell the Tirelli labeller who was from the line (fillin... |
|
|
 |
Brand: Treu
Masseira pony mixer.
Machine with panel and mechanical components.
Brand Name: Treu.
Manufacturer description: Rotary hopper mixer.
Capacity informed on the plate: 400/500 L.
With motor for automatic opening of the top cover.
With c... |
|
|
 |
Brand: Km
- Electropneumatic Batoqueira
- Brand: Km machines.
- Model: (BA002)
- Made of stainless steel. Semiautomatic equipment, allows pressure adjustment, has counter parts, column with height
adjustable.
- Machine of easy handling and low ... |
|
|
 |
Brand: Indumak
Components: Atos, Festo, Siemens, WEG
Vertical powder packer with helical dosing system
Brand: Indumak.
Model: MG 8000.
With thread, dosing system and format.
With panel.
System of vision Acts series interactive.
Inverters Weg CFW 08.
CLP Atos MPC 4004.
Servo driv... |
|
|
 |
Brand: Martinez taboada
Filling machine for vials and flasks with stopper.
Brand: Martinez Taboada.
Model type: Ife 77.
Makes up to 30 ml.
Year: 1979.... |
|
|
 |
Brand: Jemak
Automatic sealer for cardboard boxes.
Sealing of the cardboard box by hot glue system, Hot Melt.
Brand: Jemak.
Model: HM 36.... |
|
|
 |
Brand: Niva Pack
Components: Allen-Bradley
Vertical powder packer with volumetric system
Brand Name: Niva Pack.
Model: Absolut 350.
With pneumatic system of dosage of trough.
Machine with shape and thread.
Electric panel.
Allen Bradley PanelView 300 Micro Vision Panel.
Al... |
|
|
 |
Stainless steel tank with mixer ...
2400 litres capacity.... |
|
|
 |
Stainless steel tank with mixer and simple.
1400 litres capacity.... |
|
|
 |
Brand: IMSB, Rodopac
Automatic Capper with 6 nozzles.
Manufacturer: IMSB.
Model: TSB 25.06
6 Nozzles.
Measures 40 mm: 1.50 mm x 1.20 mm x 2.30 mm height.
Bondone and thread plastic bottles of 850 ml.
Capacity of 150 bottles per minute.
Weight 1,100 kg.
... |
|
|
 |
Brand: Tirelli
Labelling machine for bottles, Cologne and perfumes.
Brand: Tirelli.
Model: Delta.
Year: 1999.
Height: 2.00 m.
Width: 1.80 meters.
Length: 2.40 metres.
Weight: approx. 300 kg.... |
|
|
 |
Stainless steel tank with 1,500 liters with motor and reducer.
- Tank size 1,20 x 1,20 x 3,14 x 1,40: 4 = 1582 liters = 1500 liters.
- Engine of 5vc 1725 rpm.
- Motor of 220 v / 380v / 440 v.... |
|
|
 |
Brand: G.C.Neto
Cartridge stamper.
Manufacturer / brand: C. G. Neto.... |
|
|
 |
Coater in stainless steel tablets.
Type: Drageadeira.
With retractable head.
For approximately 150 L.
With two spray coating.... |
|
|
 |
Brand: G.C.Neto
Cartridge stamper.
G.C.Neto brand.
voltage 220 model TVM-0.... |
|
|
 |
Brand: Polienva Movitron
- Pneumatic dosing machine.
- Stainless steel.
- Brand: Polienva Movitron.... |
|
|
 |
Brand: Rodighero
Floor type Bundling with sealing and tunnel trainer.
Rodighero
Manufacturer Machine automatic monoblock baler ER 400.
Used for beverages, foods and chemicals (for example: SOAP, detergent and paint);
cutting and automatic sealing System with ... |
|
|
 |
Brand: Martinez taboada
Rinsers of vials and flasks.
Mrca: Martinez Taboada.
Makes up to 30 ml.
type Model. IFE 77.
Year. 1979.
the machine was being used all the time, is in a State of preservation as the machines of the perfume line.... |
|
|
 |
Filter sparkler.
Stainless steel.
Capacity: 50 liters.
With pump.... |
|
|
 |
Stainless steel tank with internal cooling like tina.
220 litres capacity.... |
|
|
 |
Jacketed stainless steel pressure reactor.
With motor, reducer and scraper shaft.
Approximate capacity: up to 200 liters.
For mixing homogenization of products such as cosmetics, chemicals, among others.
Equipment internally in stainless ... |
|
|
 |
Brand: Stokes
Remote Stoks B2 model.... |
|
|
 |
Brand: Imarvil
Stainless steel washer bottles, use to sterilize the product packing container to be filled.
the liquid used to wash is alcohol.
Brand: Imarvil... |
|
|
 |
Pressure reactor in stainless steel.
Type bioreactor.
In great condition.
Capacity 200 liters.
Measures:
Height: 2,10 m.
Width: 0.85 m.
Length: 1,50 m.
With temperature sensor.
With inputs for oxygen sensor, PH and other in... |
|
|
|
|
Visitation: Schedule date for visitation and check equipment availability. Merely illustrative images.
|
|
|
| |
|
|
Camargo Industrial acts exclusively as an advertising platform. All information, photos, descriptions, conditions, and equipment compliance are the sole responsibility of the advertisers, and it is up to the buyers to verify their accuracy before purchasing. Camargo Industrial does not guarantee the accuracy, completeness, legal and technical availability of the advertised equipment.
Workplace safety with machinery: The platform does not perform inspections or certifications. The suitability of equipment to standards is the responsibility of sellers and buyers.
|
 |
| |
|
