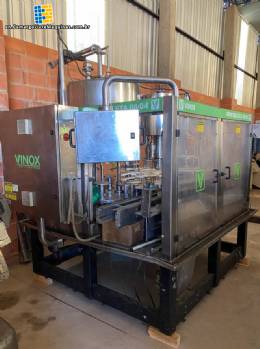

| Gravimetric rotary filling machine in stainless steel with cabin |
|
Rotary gravimetric filling machine in stainless steel, enclosed.
Manufacturer: Vinox / Zegla.
Estimated production:
For the 5 L format, 2,000 to 2,500 units per hour, depending on product viscosity, nozzles, characteristics, and foam.
For the 1 L format, estimated production of 3,600 to 4,000 units per hour, depending on product viscosity, nozzles, characteristics, and foam.
Filling machine with capping unit for 1-liter to 5-liter bottles, gallons, and carboys, depending on the height and width of the bottle.
Equipment with automation retrofit and program improvements.
PLC and IMH, manufacturer: Siemens.
Program logic:
The equipment has a color touchscreen for easy operation, where it is possible to parameterize and save recipes.
The following is the logic of the equipment's sensors, allowing for parameterization and delay adjustment:
- Activation of the bottle feeder (sensor on the incoming conveyor)
- Activation of the product pump to maintain level and open the pneumatic actuator (sensor on the float).
- Activation of the pneumatic piston at the conveyor inlet, minimum bottle load on the conveyors.
- Bottle presence sensor at the filling area (Shift Register).
- Bottle presence sensor during capping for calculating the number of bottles between filling and capping position (Shift Register).
- Sensor in the mechanical synchronization (Shift Register)
- Real-time configuration and reading of shift register data on the HMI.
- Sensor for activating the cap sorting pan and vertical feeder conveyor (giraffe).
- Sensor at the conveyor exit for maximum bottle load.
- Sensor for door opening and machine shutdown.
- Password-protected access level.
New documentation prepared by a specialized company:
- Complete electrical diagram.
- Equipment operation manual.
Gravimetric filling system with 8 nozzles.
With a giraffe conveyor to raise the caps, with automatic capping and screwing by 4 heads.
Equipment constructed of stainless steel for contact parts, with polycarbonate enclosure. |
Brand:
Vinox, Zegla
|
|
|
|
|
|
Other similar equipment for research results
:
|
|
 |
Brand: IMSB, Maqmundi
PET bottle filling line with bung capper, labeler, and accumulator table.
Comprises:
- Stainless steel rotary gravimetric filler with 16 nozzles.
With bung capper.
Manufacturer | Brand: IMSB / Rodopac.
Model: EGT8 16 / 4.
Approximat... |
|
|
 |
Brand: IMSB
Stainless steel rotary gravimetric filling machine with 16 spouts.
With bung capper.
Manufacturer | Brand: IMSB / Rodopac.
Model: EGT8 16 / 4.
Approximate maximum nominal speed: 6,000 units/hour.*
*For 500 ml and 750 ml bottles.
Speed... |
|
|
 |
Brand: UNITI
Gravimetric filling machine in stainless steel with 4 spouts.
Manufacturer: UNITI.
Model: ELG.
For filling liquids and pastes by gravity.
Approximate capacity: up to 800 bottles / hour.*
*bottle 310 ml.
Year: 2021.
Voltage: 220V.
... |
|
|
 |
Brand: Vinox, Zegla
Components: Allen-Bradley, Danfoss, DeviceNet, Phoenix Contact, Siemens, Ventisilva, WEG

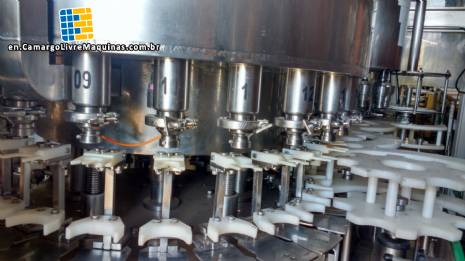

Rotary refrigerated filling machine.
Brand: Vinox Zegla.
Model: Quadriblock, VX Reet.
Year: 2012.
Cabin equipment, with cooling of the internal filling atmosphere.
With CIP system.
Gravimetric load cell filling with individual nozzl... |
|
|
 |
Brand: Mesal
Rotary filling machine for non - carbonated products.
Brand: Mesal.
Year: 2013.
With 20 nozzles, gravimetric.
In 304 stainless steel.
Production: 14,000 units per hour.... |
|
|
 |
Brand: IMSB, Rodopac

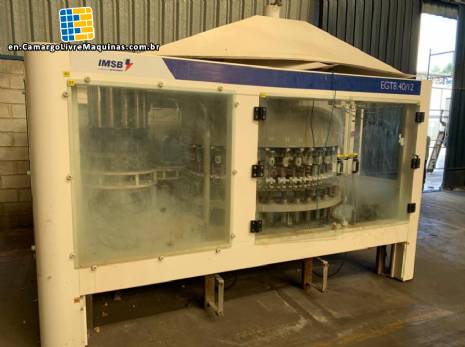

Gravimetric filling machine with 40 nozzles.
Brand: IMSB.
Model: EGT8.40/12.
Anp: 2016.
It was used for chlorine.
With capper.
Voltage: 220V.... |
|
|
 |
Brand: TRUE
Linear gravimetric filling machine with 12 nozzles.
Manufacturer | brand: TRUE MAQUINAS IND. COM. LTDA.
Model: TEL 1001.
For bottles of: 140ml, 300ml, 500ml and 2 liters.
Lid: Screw.
Approximate estimated filling time:*
*Equipment dev... |
|
|
 |
Brand: IMSB, Robopac
Components: Siemens
Gravimetric filling machine and threading machine in stainless steel linear system.
Manufacturer: Robopac IMSB.
Year: 2019.
Model: EGL10.12
Dosing system with 12 nozzles.
Upper lung tank.
Worked with food packaging without contamina... |
|
|
 |
Brand: IMSB, Posimat, Rodopac

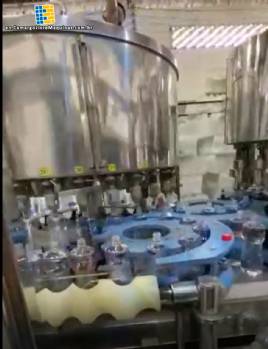

Gravimetric filling line.
Brand: IMSB.
Model: EGT 30/10.
Process: Bottle of liquid alcohol from 500 ml to 1 L.
Approximate production: 180 vials per minute.
Bottle positioner: Posimec year 2016.
WEIGHT: 3500 KG.
VOLTAGE: 220 VAC ... |
|
|
 |
Brand: IMSB, Rodopac

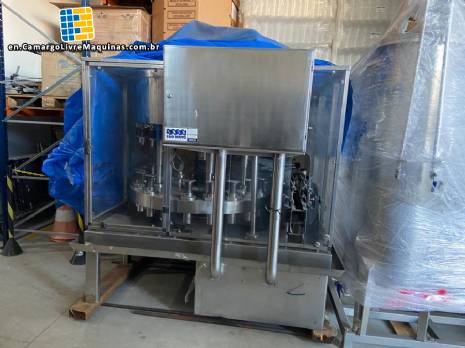

Gravimetric filling and threading machine with 20 nozzles.
Brand: IMSB (São Bento Mechanical Industry).
Model: EGT8 20/05-04.
Voltage: 220 V three-phase.
Year: 2005.
Approximate capacity: up to 6 thousand per hour.... |
|
|
 |
Brand: Narita
Components: Schneider

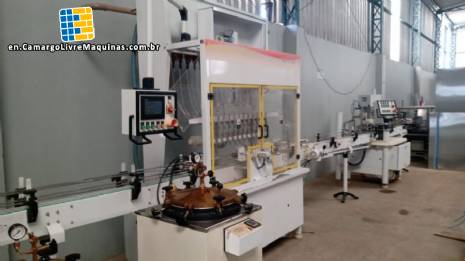

Automatic linear filling machine with 12 stainless steel spouts.
With screw capper.
Manufacturer: Narita.
Model: NT 12.
Year: 2011.
Bottle volume: 1 liter to 3 liters.
Approximate productivity: up to 3000 vials / hour.
With gravi... |
|
|
 |
Brand: Consultec PA, Ksb, Netzsch, ProMinent
Components: WEG
Dissolved Air Flotation (DAF) System.
Wastewater Treatment Plant.
Manufacturer: Consultec PA - Environmental Protection Technology.
Model: FAD C-30 FQ.
Approximate flotation capacity: 30 m³/h.
Composed of:
- Tubular hydraulic floccu... |
|
|
 |
Brand: Indumak

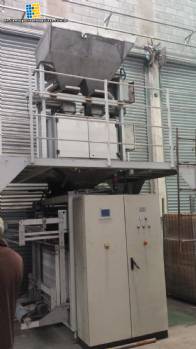

Vertical automatic packaging.
