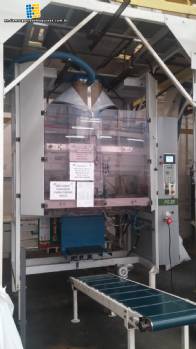

| Indumak package PG 25 |
|
Manufacturer-Indumak.
time-6 years.
average production-08 to 10 products per minute.
packages that used-10 kg/15 kg/25 kg.
bagged product-animal feed with density 350 g/l to 450 g/l
-
Description the packinghouse PG 25 is offered for high-volume packaging, mainly for the Pet Food, in presentations of 8 kg , 15 kg and up to 25 kg.
can be packaged other products of similar characteristics, with dosage through scales, with two channels.
equipped with tractor packing system for belts, has various accessories that ensure high performance, as the automatic wheel alignment film Unwinder, among others.
dimensions:
packing Width: 410 to 775 mm.
packaging-pad length: 400 to 950 mm.
maximum width: 1580 mm
mechanical speed: 15 cycles/min.
outer diameter of coil : 400 mm.
coil inner diameter: 70 to 90 mm.
working voltage: 380 Volts.
electrical power: 4.2 Kva.
compressed air consumption: 1950 l/min.
working pressure: 7 bar.
equipment Weight-without feeder: 2800 Kg.
overall height: 5370 mm.
overall width: 4140 mm.
total depth: 3030 mm. |
Brand:
Indumak
|
|
|
Main applications:
Food industry
|
|
Photos and images sent by email will be considered as ad authorization on our websites and marketing.
Camargo Industrial has no responsability for the data delivered by the advertiser, (Operation, technical, maintenance, warranties, technical delivery) and registration of the same data, exempting Camargo Industrial responsibilities on the veracity of the information described, civil and criminally.
The advertiser declares that the equipment is their property, settled without alienation, pending fiscal or judicial attachment.
Standard Work Safety of Machines and Equipment (NR12): 12.1.1. Camargo Industrial does not participate in the use phase construction, transport, assembly, installation, adjustment, operation, cleaning, maintenance, inspection, decommissioning and dismantling of machinery or equipment, any such liability of the seller attributes and / or buyer, relieving - any responsibility Camargo Industrial.
