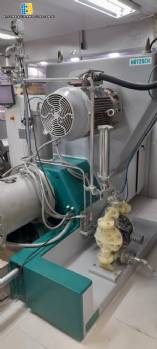

| Netzsch Zeta® 50 HP horizontal ball mill |
|
Horizontal ball mill.
Manufacturer | Brand: Netzsch | Zeta®.
Model: LMZ 25.
Year: 2013.
For fine grinding by recirculation and dispersion of micronized and non-micronized solid particles in liquids.
At the front of the grinding chamber is a tubular sieve that separates the ground product from the balls.
Technical data:
Installed power: 50 HP – 37 kW.
Electrical voltage: 380 V – 60 Hz.
Control voltage: 220 Vac – 24 Vdc.
Nominal current: 70.4 A.
Electrical protection: “IP”.
Useful volume of the grinding chamber: 25 liters.
Type of agitator shaft: Ceramic.
Agitator shaft speed: 300 – 800 rpm.
Separation system: 0.2 mm tubular sieve.
Feed pump flow rate: 200 to 1000 liters per hour.
Equipment weight (without product, without ball load): approximately 2,750 kg.
It was used to grind inorganic pigment for ceramics.
Mill with little use. |
