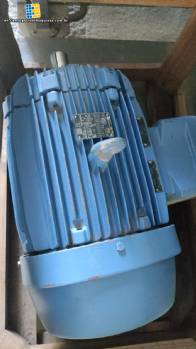

| WEG 8-pole electric motor, 12.5 hp, 873 rpm |
|
Electric motor.
Manufacturer: WEG.
Power: 9.2 kW (12.5 HP).
Rotation: 873 rpm (8 poles).
Voltage: 220 / 380 / 440 V.
Year: May 13, 2010.
Frequency: 60 Hz.
Protection rating: IP55.
Duty cycle: S1 (continuous duty).
Applications: conveyor belts, gearboxes, overhead cranes, industrial elevators, and continuous process machines.
Approximate weight: 173 kg.
Casing model: 180 M (Cast iron structure with cooling fins)
(Efficiency): 89.0%.
Power Factor ($cos phi$): 0.82.
Operating Voltages and Currents
Integrated Protections and Accessories This motor has an accessory package for severe operating conditions: IP66 Protection Rating: Completely dustproof and protected against powerful water jets from any direction.
Thermal Protection (Thermostat): Equipped with internal thermostats that operate at 130°C.
Control terminals are identified as 1TB1 and 1TB2.
Anti-condensation System (Space Heater): Features an internal heating element to prevent moisture buildup when the motor is off.
Heather Resistor Voltage: 200–240 V.
Heather Resistor Power: 32–46 W.
Connection: Terminals 1HE1 and 4HE2.4.
Maintenance Data (Bearings and Lubrication)
Front Bearing: 6311-C3.
Rear Bearing: 6211-Z-C3.
Recommended Grease: Polyrex EM-ESSO.
Lubrication Interval: 20,000 hours (quantity: 18g)
Wiring Diagrams
Delta ($Delta$): 220 V.
Star ($Y$): 380 V.
Double Delta ($DeltaDelta$): 220 V.
Star-Series ($YY$): 380 V.
Delta-Series ($Delta$): 440 V (Only suitable for starting in certain configurations). |
