| Autoclave horizontal em inox 200 litros Phoenix Luferco |
|

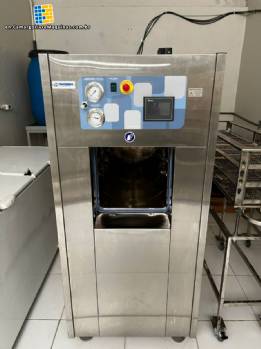

Horizontal stainless steel autoclave.
Manufacturer: Phoenix Luferco.
Model: 39206 1P / E / CL / PDA.
Approximate capacity: 200 liters.
Year: 2022.
Operated for 6 months.
For sterilization of various materials and utensils in industries, laboratories and vivariums.
Steam production: 35.9 kg per hour.
Power: 27 KW.
Voltage: 220 V three-phase.
Frequency: 60Hz.
Current: 70.9 A.
Internal dimensions:
Height: 410 mm.
Width: 410 mm.
Depth: 1200 mm.
It has manovacuometer to indicate pressure and vacuum in the internal chamber.
It has a manometer to indicate the pressure in the external chamber (jacket) and a steam generator.
With coupled steam generator.
It has a class 1 PT-100 type temperature sensor.
With two pressure transmitters.
Drying by 1.5 HP vacuum pump.
Components:
- Steam generator with electrical resistance heating.
Manufacturer: Phoenix.
Year: 2022.
Hydrostatic test pressure: 4.00 bar.
Vessel Category: V NR-13.
Fluid class: C - Water vapour.
Risk group: 5 (PxV<1).
code Project: ASME Section V111 Division 1 - 2019.
- WEG 2 HP thermal protector.
- Air compressor.
Manufacturer: FIAC Bulldog.
Approximate volume: 100 liters.
Potency: 2 HP.
Year: 2021.
Weight: 35 kg.
- Centrifugal pump.
Manufacturer: Thebe / Ebara.
Model: THA-16 Br Three-phase IP21 / IR3.New.
Power: 1 hp
Rotation: 3500 RPM.
Maximum Flow: 15 m³ / h.
Rotor: 128.
Suction: 1.1/2.
Maximum flow m³/h: 15.
- Peripheral pump.
Manufacturer: Ferrari / Versa.
Model: IDB-40.
Line: Premium.
Flow (Q): 2400 liters / hour.
Engine power: 1/2 hp.
Head (Max) HM: 36 MCA.
Engine power: 1/2 hp (370W)
Suction height (max) - hs: 8 MCA.
- Three-phase squirrel cage induction motor.
Manufacturer: NEW.
Model: 80.
Power: 1.5 hp.
High yield 84.0%.
- CLP HMI manufacturer Delta model: DOP - 103BQ.
- Counter manufacturer ABB model AX 95-30. |
