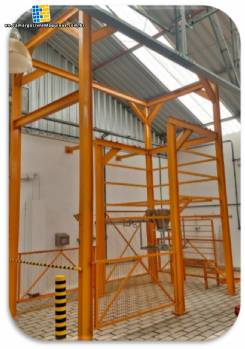

Unit for unloading 2000 kg big bags with Artinox screw conveyor.

Big Bag Unloading Station System | Big Bag Unloading Unit

Rack support structure for unloading Big Bags with screw conveyor.

Approximate capacity: up to 2 tons | 2000 kg.

Manufacturer | Brand: Artinox.

Used with Big Bags of crystal sugar.

Year: 2016.

Operation: 5 years

Total Weight: 1270 kg.

Approximate overall dimensions:

H: 5360 x W: 3550 x L: 2000 mm.

With 2-ton electric hoist and screw conveyor with a flow rate of 3000 kg/h.

The Big Bag structure is divided into the following parts:

- Structure with I-beam – 6”, in carbon steel;

- Big Bag lifting support with I-beam – 4”, in carbon steel;

- Product feeding cone;

- Gate valve; - Access platform;

- Protective railings.

Equipped with an electric wire rope hoist with trolley.

For lifting and moving heavy loads.

Manufacturer | Brand: Sansei.

Lifting height: 9000 mm.

Control panel: 6 buttons + emergency stop.

Approximate capacity: 2000 kg.

Motor protection class: IP44 / IP54.

Approximate dimensions (H x W x L) (mm): 580 x 650 x 1150.

Lifting motor (kW): 3.

Travel motor (kW): 0.4.

Weight (kg): 282

Hook type: 2/1

Lifting speed (m/min): 8

Translation speed (m/min): 20

Voltage (V): 220/380 Three-phase

With screw conveyor.

Manufacturer | Brand: Artinox

Gear Motor: SEW (Worm Screw) Electric Motor Power: 1 HP

Input/Output Ratio: 1710/185 rpm/min

Flow Rate: 3000 kg/h
