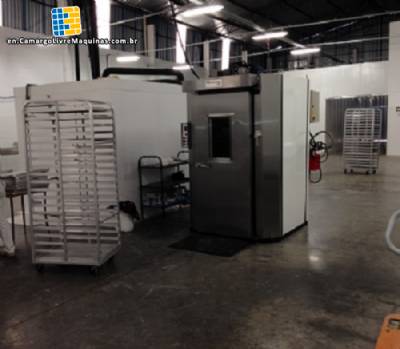

| Vertical Rotary gas furnace with rotary car by geared motor Brasforno |
|
Vertical Rotary gas furnace with rotary car by geared motor.
Brand Name: Brasforno.
Model: FVR.
Connective heating (up to 300 degrees)
Heating (natural gas or LPG).
Oven dimensions: 1.45 m x 2.10 m x 2.70 m
cart Dimensions: 0.66 m x 0.82 m x 1.90 m.
Bakes foods with or without use of steam (breads, Christmas pudding, biscuits/cracker), toast (almonds, peanuts, cashews) or dry (fruit, vegetables, fish).
Thermal insulation by rock wool: 20 cm.
Front and door in stainless steel 430 and viewfinder with tempered glass (10 mm).
Has valve to regulate the steam formed by moisture of food, relief valve still increase the internal pressure in the oven.
Technical specifications of the oven:
FVR-01 Model GL
Power: 3.0 kw.
280° c maximum temperature.
Voltage-220 v-60 hz power.
Valve information:
model: 76510
single-stage.
Low pressure.
PE: 5 kgf/cm ².
PS: 2.8 kPa.
Flow: kg/h LPG.
Burning and system accessories and electric power, brands:
-Hofomat.
-Siemens.
-Dungs.
-Danfoss.
-Brahma.
-Icaterm Burner.
Model: ICA-G 70.
At least Kcal/h: 34,000.
Maximum Kcal/h-50/60 Hz 60,200.
voltage: 220 Volts. |
Brand:
Brasforno, Icaterm
|
Components:
Brahma, Danfoss, Dungs, Hofomat, Siemens
|
Main applications:
Food industry
|
|
